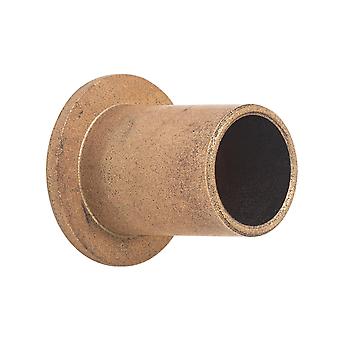

Product Details: Inner Diameter: 22. Outer Diameter: 28. Length: 30. Tolerance Range: UK Standard. Flange Thickness: 3 Flange Diameter: 34 Material Specification: Structure: Oil impregrated sintered bronze. Max PV (N/mm2 x m/s): 1.8. Max Static Load: (N/mm2): 50. Max Dynamic Load (N/mm2): 14. Max Sliding Speed (m/s): 5. Operating Temperature: -60 to 200 (dependant on lubrication). Density (g/cm3): 6.6 Radial Crushing Strength (K Min M/mm2): 160. Tolerance & Fittings (Metric): Inside Diameter: Min: 22.007 Max: 22.028 Tolerance: G7. Outside Diameter: Min: 28.035. Max: 28.056. Tolerance: s7. Overall Length: Min: 29.835 Max: 30.165 Tolerance: js13 Flange Thickness Tolerance: Min: 2.930 Max: 3.070 Tolerance: js13 Flange Diameter Tolerance: Min: 33.805 Max: 34.195 Tolerance: js13 Recommended Housing Size: 28.000 28.021 Tolerance: H7 Shaft Diameter: Min: 21.959 Max: 21.980 Tolerance: f7 Fitting Pin Size: Min: 22.008 Max: 22.017 Tolerance: m5 Concentricity Max: Min: 0.052 Max: 0.052 Tolerance: IT9 Inside Diameter When Fitted: Min: 22.000 Max: 22.021 Tolerance: H7 PV Calculation: Max RPM: 4340.589 Max Load (KG): 2803.262 Max PV Factor (N/mm2 x m/s): 1.8
