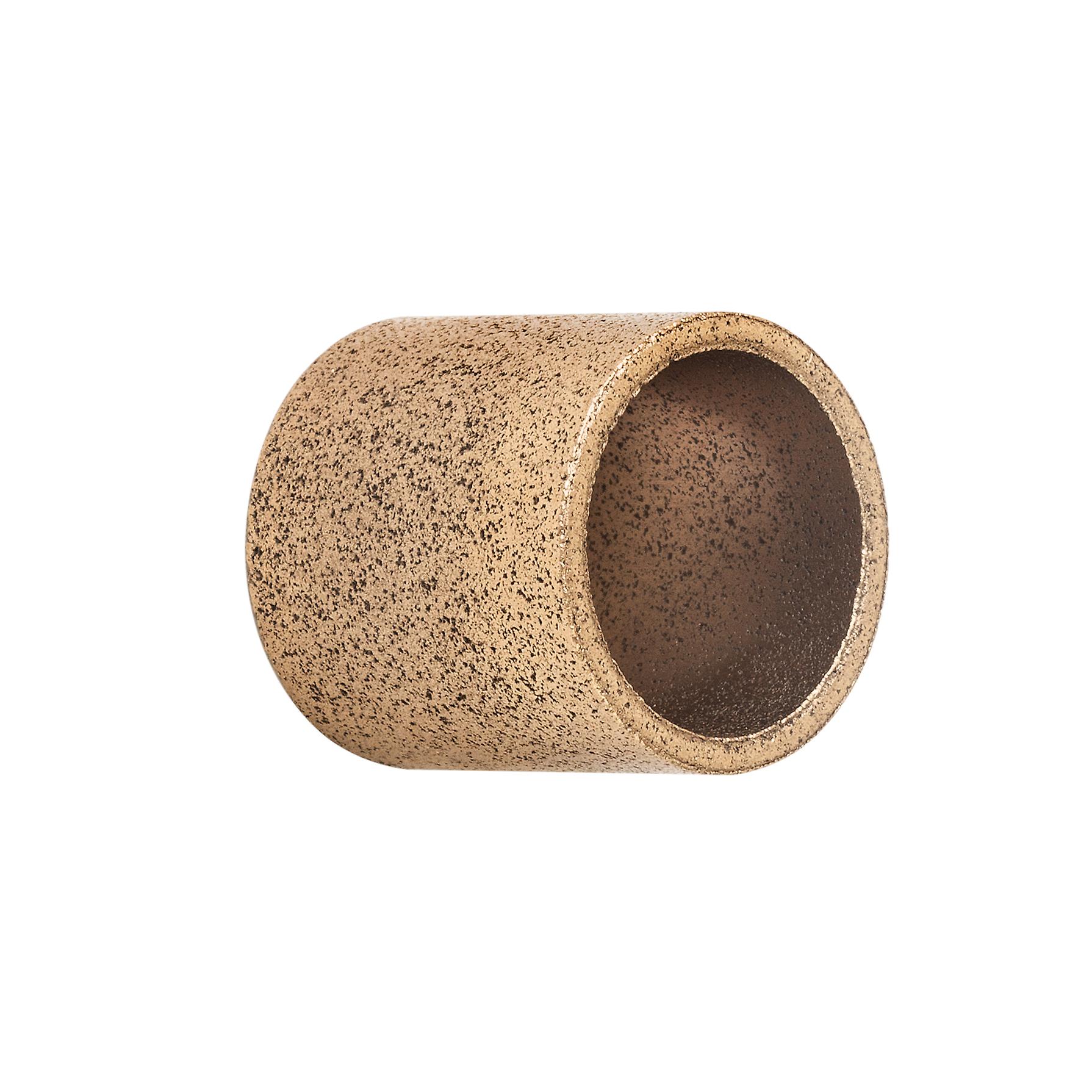

Product Details: Inner Diameter: 40. Outer Diameter: 46. Length: 30. Tolerance Range: UK Standard. Material Specification: Structure: Oil impregrated sintered bronze. Max PV (N/mm2): 14. Max Static Load: (N/mm2): 50. Max Dynamic Load (N/mm2): 14. Max Sliding Speed (m/s): 5. Operating Temperature: -60 to 200 (dependant on lubrication). Density (g/cm3): 6.6 Radial Crushing Strength (K Min M/mm2): 160. Tolerance & Fittings (Metric): Inside Diameter: Min: 40.009 Max: 40.034 Tolerance: G7. Outside Diameter: Min: 46.043. Max: 46.068. Tolerance: s7. Overall Length: Min: 29.835 Max: 30.165 Tolerance: js13 Recommended Housing Size: 46.000 46.025 H7 Shaft Diameter: Min: 39.950 Max: 39.975 Tolerance: f7 Fitting Pin Size: Min: 40.009 Max: 40.020 Tolerance: m5 Concentricity Max: Min: 0.062 Max: 0.062 Tolerance: IT9 Inside Diameter When Fitted: Min: 40.000 Max: 40.025 Tolerance: H7 PV Calculation: Max RPM: 2387.324 Max Load (KG): 6116.208 Max PV Factor (N/mm2 x m/s): 1.8
