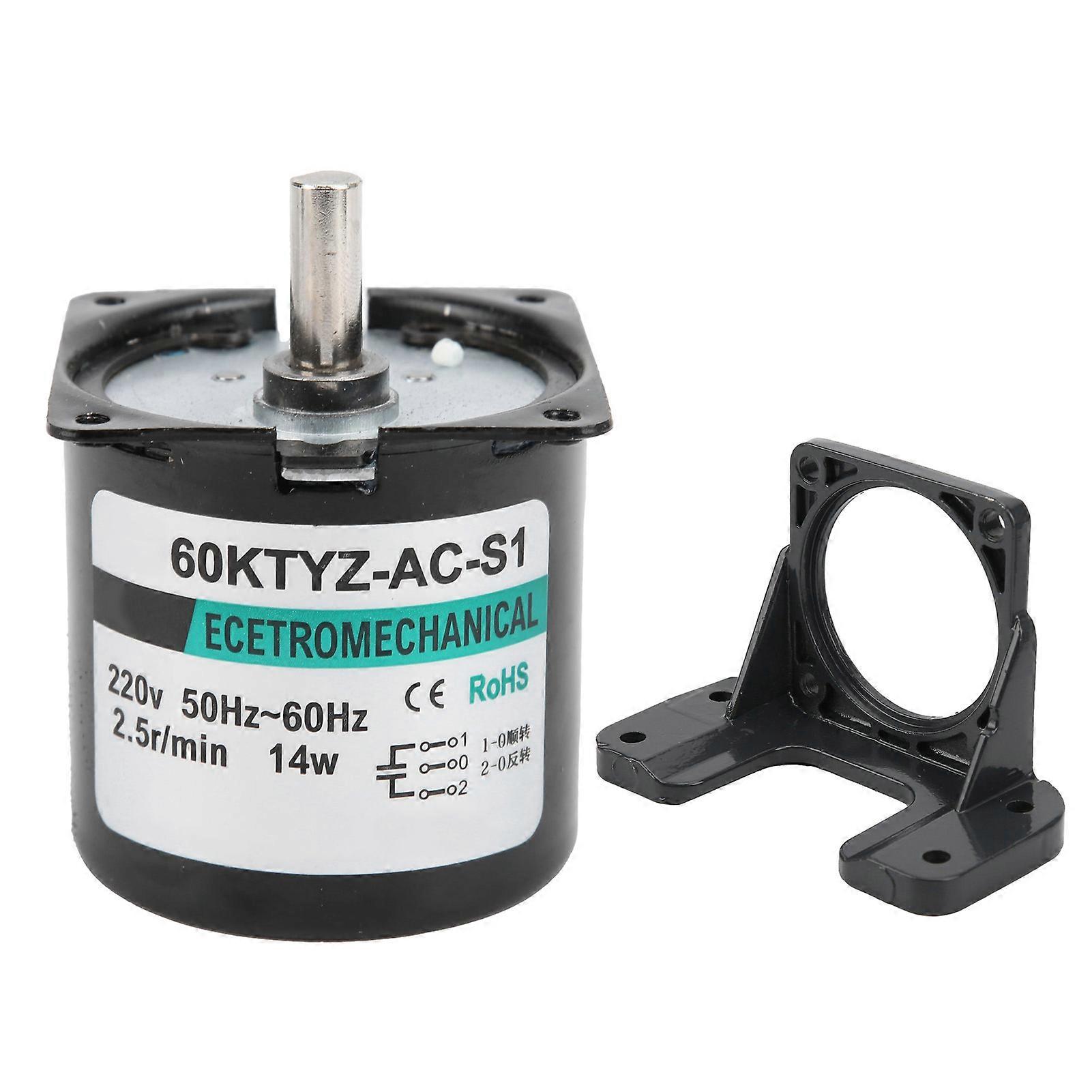

Item Type: Micro Motor_x000D_ Model: XD-60KTYZ + bracket_x000D_ Material: Copper_x000D_ Output Shaft Size: Approx. 7 x 19mm / 0.3 x 0.7in_x000D_ Protection Level: IP20_x000D_ Insulation Resistance: After the rated operation of the motor under normal temperature and humidity, when measuring the insulation resistance between the coil and the motor shell with a DC500V resistance meter, it does not exceed 20M_x000D_ Insulation Withstand Voltage: After the rated operation of the motor under normal temperature and humidity, apply 50Hz or 60Hz between the coil shells for one second at a voltage of 1800V without abnormality._x000D_ Temperature Rise: When the gearbox or equivalent heat sink is installed, and the rated operation is performed under normal temperature and humidity, it is normal to measure the temperature rise of the coil by the resistance method to 75-80._x000D_ Insulation Class: E class (130)_x000D_ Operating Environment Temperature: Motor: -10~+40 (no icing)_x000D_ Use Environment Humidity: 85% or less (no condensation)_x000D_ Whether Support CW and CCW: Yes_x000D_ Whether Support Speed Regulation: No_x000D_ ModelVoltage (V)Speed (rpm/min)Normal Torsion (kgfcm) Long Time WorkLarge Torsion (kgfcm) Intermittent WorkPower (W)_x000D_ XD60KTYZAC220V2.5385014_x000D_ 5283414_x000D_ 10202614_x000D_ 15152014_x000D_ AC110V2.5385014_x000D_ 5283414_x000D_ 10202614_x000D_ 15152014
