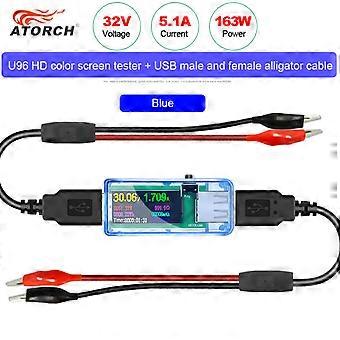

Tips: 1) The upgraded version of the U96 model now supports 180W power with a maximum voltage of 32V and a maximum current of 6.5A. The upgraded USB port is OPPOs 5P high-current port, but some Huawei chargers are 4P ports. If you find contact If it is not good enough, the current is low or no power is supplied. At this time, please try to pull out a short section for better contact and compatibility; 2) In addition, the button operation logic is optimized this time: Click the button to switch the interface cyclically; quickly double-click to clear the capacity, three-click to clear the battery, four-click to clear the time, and long pre the button to clear all accumulated data ; Long pre on the AAA interface is the screen flip; when you see the model is U96, please follow this instruction to operate the keys, thank you(2020.12.20) USB multi-function true color screen four high-precision tester Adopt 12800 pixel IPS true color LCD screen General test of various USB digital devices, support Qualcomm QC3.0/2.0/MTK-PE fast charging voltage A variety of parameters on one screen display, real-time monitoring of charging voltage, current, power, capacity, power, timing, temperature (Celsius / Fahrenheit, etc.) U96 multi-screen interface design display U96 key button operation instructions: 1. Short Pre key button to switch screen 2. Long pre key button the screen to flip 3. Quickly double-click key button the power Wh to clear zero 4. Fast three-click capacity mAH to clear zero 5. Fast four-click time to clear zero Real-time monitoring of the charging status of various data Cable U96 USB color tester can monitor the charging data of the mobile phone in real time, supporting QC3.0 (3.8~12V, -/+0.2 step) Support QC2.0 (5V9V12V20V), Android BC1.2 (5V), Apple 5V2.4A and MTK-PE (5V/7V/9V/12V) Wait for the fast charging voltage range to charge! Smart repair hardware, poor software calibration technology Pre and hold the USB tester button when no power is on, and insert the USB charger to enter the background calibration mode. Pre the button shortly to switch to the corresponding calibration function, long pre to confirm the corresponding calibration function! (Tips: This calibration must use 5V standard voltage and 2A constant current power supply, no misoperation is allowed.) Support Huawei super fast charge detection Support various fast charge detections such as Huawei/Samsung/OPPO/VIVO, DCP (9V2A), SCP (4.5V5A) Super flash charging 4.5V5A, Samsung / Qualcomm 5V9V12V and other fast charging protocol Color screen display on/off function By preing the button to switch the interface to the information screen to turn off the display, you can also charge the device normally! Click the button to wake up the display again General test various USB charger Through the constant current load, you can test whether the voltage and current power of its charger meet the nominal value. General test of various charging treasure capacity First clear all data of U96 color screen, clear it and insert it into charging USB Output port, then the U96 color screen meter output port is connected to the discharge load to discharge until When the charging power is used up, the capacity value (mAH) shown above is multiplied by the ratio of the aluminum battery to the output voltage and the charging efficiency ratio is the charging capacity. (Approximate multiply by 1.35 when outputting 5V, and approximately equal to the nominal value of charge Po when it is multiplied by 2.45 when outputting 9V) General test of various mobile hard drive Test a variety of technical parameters such as the current and voltage of the mobile silver disk of the notebook, USB connection test, and easily carry out various electrical monitoring of the device. U96 13 IN 1 Technical parameter Voltage measuring range: 3.60V ~ 32.5 V Resolution precision: 0.01 V Current measuring range: 0.00A ~ 5.00 A Resolution precision: 0.01 A Power cumulative range: 0 ~ 999999 WH Resolution precision: 0.001 Wh Capacity range : 0 ~ 999999 mAH Resolution precision: 0.001 Ah Temperature0 ~ + 80 Resolution precision:1 D+ Voltage : 0.000V ~ 2.999 V Resolution precision: 0.001 V D- Voltage : 0.000V ~ 2.999 V Resolution precision: 0.001 V Load impedance: 0 ~ 999 ohm Resolution precision: 1 ohm Power metering range: 0 ~ 299.999 W Resolution precision: 0.001 W Timing maximum time: 999 H 59 M 59 S Resolution precision: 1 S Time to refresh: > 500 ms/time > 500 ms/times Measurement rate: 0.5 times/s Use large equipment of the same metal manganese bronze sampling resistor (1.0 mm diameter metal manganese bronze material < 0.05R) Product size: 65 x 24 x 14 mm Since the power flow: < 0.003 A < 3mA Working temperature: - 10 ~ + 60 Working humidity: 10 ~ 80 (no doubt) The preure of work: 80 ~ 106 kpa Cumulative capacity range: 0-99999 mah precision: 0.001 Ah (New features or D+ D- Voltage ) Specifications: Item size:65 * 24 * 14 mm
