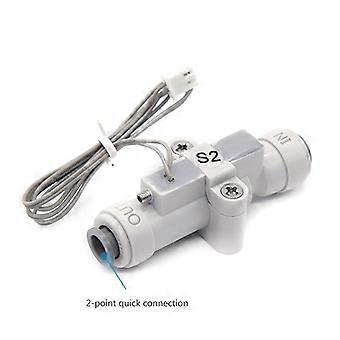

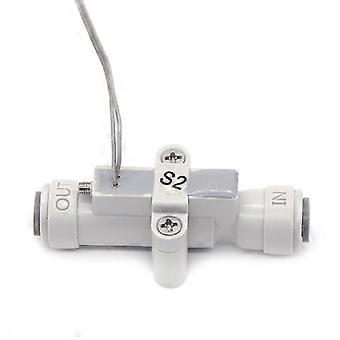

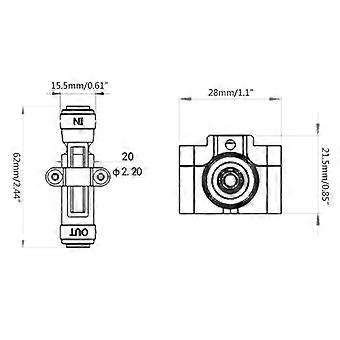

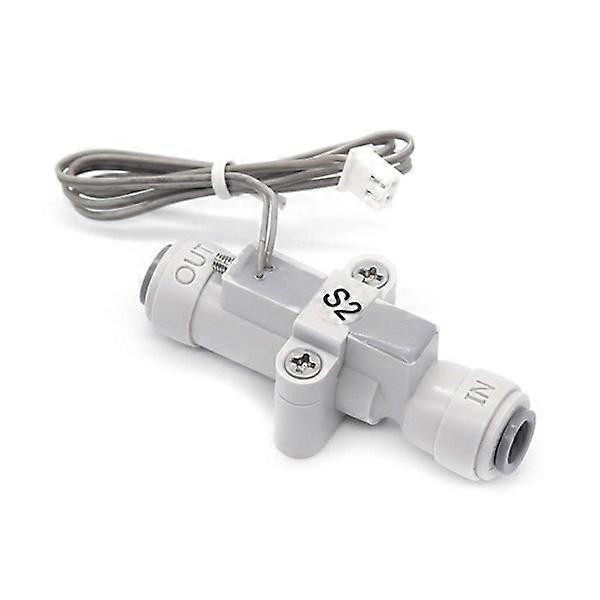

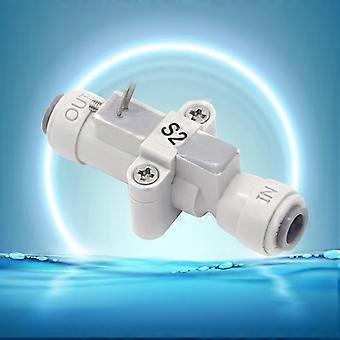

Features: When water flows in the preset flow channel, it pushes the magnet to displace it. When it moves to the corresponding reed switch, the reed switch conducts after sensing the magnetic field. When there is no water flow, the magnet returns to its position under the pressure of the spring, and the reed switch is disconnected after the corresponding reed switch cannot sense the magnetic field. Thread: G1/4 inch, starting flow: 300 ml/min, response time: less than 1s. Lightweight, reasonable size, stable performance, low water pressure start, easy to install, safe to use. Can be used perfectly for water coolers, water purifiers, water dispensers, etc. Made of high-quality material, which is sturdy and durable in use. Specifications: Material: plastic Body size: approx. 6.2x2.8x1.6cm/2.4x1x0.63 inches Applicable water quality: turbidity less than 1; Fe-, C-o & Ni- less than 0.3 Mg-/L Applicable water pressure: equal to or less than 0.8 MPa Applicable water temperature: 5~50 C Ambient humidity: less than 85% Storage temperature: -20~50 Thread: G1/4 Starting flow: 300 ml/min Response time: less than 1s Switch type: Normally Open Wiring length: 50 cm Cable connection strength (output end of the body): Exert 20 N-10 s tensile force along the axis of the terminal Apply 20 N-10 s tensile force along the vertical direction of the terminal (no damage at the connection) Hydrostatic pressure: Open at 1.05 MPa for 5 minutes (no leakage or damage Voltage resistance: applied between live parts and non-live parts DC160V, 1 min or DC200V, 1 s (No flicker or breakdown) Maximum closing current: 0.5 A Maximum load current: 1 A On-resistance: 0.12Q- Disconnect resistance: 10120 Capacitance of power connection: 0.2 PF Note: Please allow 1-3cm error due to manual measurement. Please make sure you do not mind before you bid. Due to the difference between different monitors, the picture may not reflect the actual color of the item. Package includes: 1x Water Flow Switch
