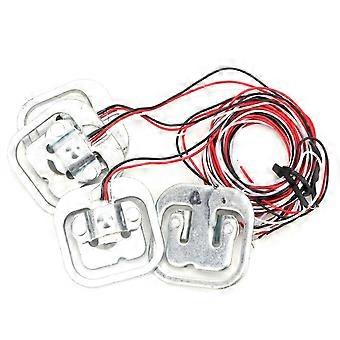

Features:_x000D_ _x000D_ This module uses a 24-bit high-accuracy A/D converter chip HX711, which is designed for high-accuracy electronic scales. _x000D_ Two analog channel inputs with integrated 128x gain programmable amplifier. _x000D_ The input circuit can be configured into bridge sensor which provide bridge pressure(eg, pressure, weighing) sensor modes, making it an ideal high-accuracy, low-cost sampling front-end module. _x000D_ The weighting sensor is accurate and sensitive with small volume. _x000D_ The sensor is a set of half-bridge strain gauge which has three using modes. _x000D_ _x000D_ Specification:_x000D_ Sensor Size:34*34mm/1.34*1.34in_x000D_ _x000D_ Sensor Inner Construction: 1000ohm half-bridge strain gauge _x000D_ Measuring Range: 50kg/100kg/200kg _x000D_ _x000D_ Package List:_x000D_ 4 * Weighting Sensor_x000D_ 1 * HX711 Module_x000D_ _x000D_ Users Manual:_x000D_ When measuring, the outer side is correctly applied with external force. The strain beam part of the E-shaped sensor (that is, the beam arm with the white rubber in the middle of the strain gauge) and the outer side are to form a shearing force in the opposite direction, that is, the middle of the strain beam must be able to undergo bending changes under stress, and there should be no obstruction on the other side of the strain beam._x000D_ _x000D_ Inside the sensor is a set of half-bridge strain gauges, which can be used in the following three ways:_x000D_ 1. Use one sensor with external resistor to form a full bridge measurement. The range is one sensor's range: 50kg. Requires higher demands of outer resistor._x000D_ 2. Use two sensors to form a full bridge measurement. The range is the sum of the ranges of the two sensors: 50kgx2=100kg._x000D_ 3. Using four sensors to form a full bridge measurement, the range is the sum of the ranges of four sensors: 50kgx4=200kg_x000D_ _x000D_ _x000D_ _x000D_ Note:_x000D_ Please note that the new type and old type of this product will be sent randomly, and make sure you will not mind before ordering.
