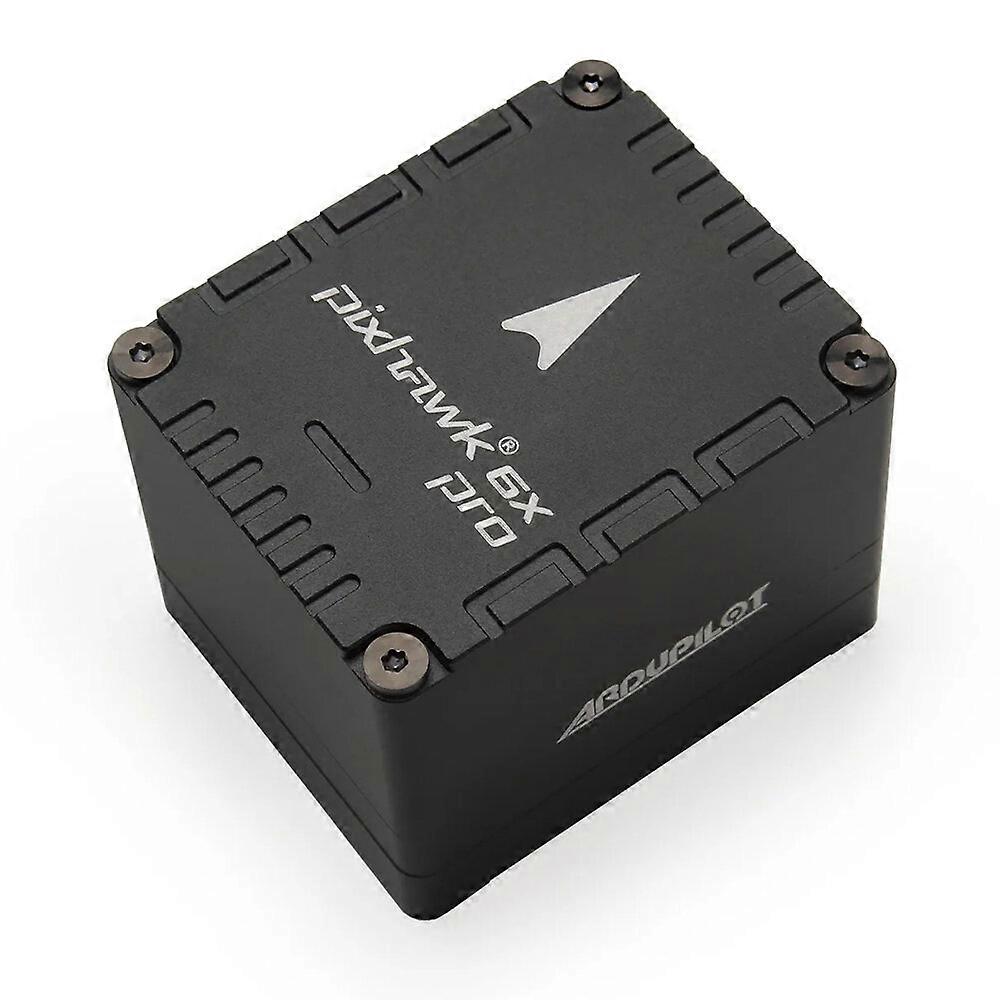

Key Design Point: - High-performance ADIS16470 Industrial IMU with high accelerometer dynamic range (卤40 g), perfect for accurate motion sensing in demanding UAV applications - All New advanced durabl vibration isolation material with resonance frequency in the higher spectrum, ideal for industrial and commercial drone applications - Triple redundant IMU & double redundant barometer on separate buses - High performance STM32H753 Processor - Modular flight controller: separated IMU, FMU, and Base system - Safety-driven design incorporates sensors from different manufacturers and model lineups - Independent LDO powers every sensor set with independent power control. - Ethernet interface for high-speed mission computer integration - Temperature-controlled IMU board, allowing optimum working temperature of IMUs All new Vibration Isolation Design This new vibration isolation design uses a custom-formulated durabile silicone-based isolation material in place of the traditional foam design. Backed by extensive R&D and testing, it offers optimal IMU damping characteristics with resonance frequency in the higher spectrum, perfect for industrial and commercial drone Note: FC Module + a baseboard is required for this product to function. A FC Module or a Baseboard by itself will not function. Specification: Brand: Holybro Model: Pixhawk 6X Pro Item Name: Pixhawk 6X Pro Flight Controller Optional Version: Flight Controller ( Only FC ) / Combo Version ( FC + Standard Baseboard) Processors & Sensors FMU Processor: STM32H753 -32 Bit Arm庐 Cortex庐-M7, 480MHz, 2MB flash memory, 1MB RAM IO Processor: STM32F103 -32 Bit Arm庐 Cortex庐-M3, 72MHz, 64KB SRAM On-board sensors - Accel/Gyro: ADIS16470 卤40g, Vibration Isolated, Industrial IMU - Accel/Gyro: IIM-42652 卤16g, Vibration Isolated, Industrial IMU - Accel/Gyro: ICM-45686 with BalancedGyro鈩?Technology 卤32g, Hard Mounted Barometer: ICP20100 Barometer: BMP388 Mag: BMM150 Electrical data Voltage Ratings: - Max input voltage: 6V - USB Power Input: 4.75~5.25V - Servo Rail Input: 0~36V Current Ratings: - Telem1 output current limiter: 1.5A - All other port combined output current limiter: 1.5A Mechanical data Dimensions - Flight Controller Module: 38.8 x 31.8 x 30.1mm - Standard Baseboard: 52.4 x 102 x 16.7mm (Aluminum) - Mini Baseboard: 43.4 x 72.8 x 14.2 mm Weight - Flight Controller Module: 50g - Standard Baseboard: 72.5g (Aluminum) - Mini Baseboard: 26.5g Package Includes Flight Controller Version: 1x Pixhawk 6X Pro Flight Controller Module or Combo Version Included: 1x Pixhawk 6X Pro Flight Controller Module 1x Pixhawk Standard Baseboard 1x PM02D HV Power Module 1x Cable Set
